LIFT SPRINGS KIT
- HV-198171P
- Approval: TUV
- Type: T5/T6
- Cross Country raises f/r 2.0TDI 132KW 25/30mm, 2.0TDI 103KW 30/30mm, 2.0TDI 62+75KW 45/30mm, Rear Springs Heavy Duty Set, Min. Load 600KG, Min. Rear axle load 1300KG, Incl. 4-motion
- Height difference in mm: ../..
- Assembly time in minutes: 180
- For cars made in: 2003-
- Engine: see remarks
Cross Country springs are a highly specialised addition to the MAD suspension systems range. Used for raising the ground clearance of the vehicle, a MAD Cross-Country set offers the ultimate solution for anyone traveling across off-road or bad conditions. Also a MAD Cross-Country set enables a driver to negotiate obstacles like a sleeping policeman or a road curb. For each MAD Cross-Country set the specific car model is brought into our workshops for exact measurements and design. MAD engineers work on designing and testing the best solution for each vehicle. A MAD Cross-Country Suspension Kit maximises the usability of the vehicle, while maintaining both comfort and road handling.
Specification:
Heavy Duty Spring Kit, Vehicle Min. Load 500 kg

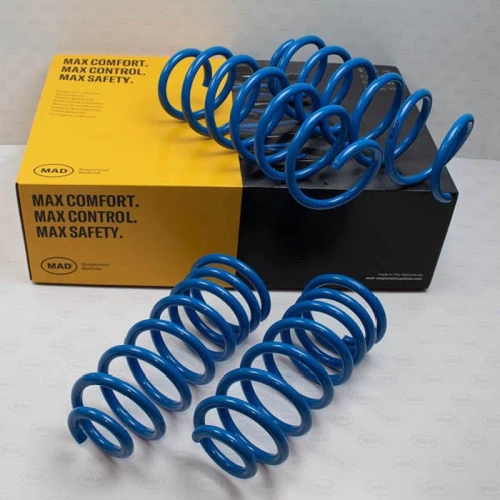

Full set of power coil springs for Front and Rear
Front Spring Type - New Main Spring
Rear Spring Type 2 - New Main Spring on Rear also
Upgrade lifts approx. 30-50 mm depending on vehicle model, see below
Fitting time 180 Mins
Complete with TÜV approval documents
MAD High Quality Product
Reliability - MAD products come with lifelong warranties
Quick installation, without excessive work
Specially developed for each individual car model
Convenient, no adjustments of original springs
Saves on maintenance and repair costs
Fitting Remarks:
HV-198171P -- NEW MAIN SPRING TYPE - HEAVY DUTY MIN. LOAD
VW Transporter T5 - 2.5 TDI 2003-2009 - Cross Country 35/40mm, incl. 4-motion
VW Transporter T5 (GP) - 2.0TDI 103KW, 2009+ - Cross Country 30/30mm, incl. 4-motion, Heavy Duty, Min. Load 500 kg
VW Transporter T5 (GP) - T5 GP 2.0TDI 132KW, 2009+ - Cross Country 25/30mm, incl. 4-motion, Heavy Duty, Min. Load 500 kg
VW Transporter T5 (GP) - T5 GP 2.0TDI 62+75KW, 2009+ - Cross Country 45/30mm, incl. 4-motion, Heavy Duty, Min. Load 500 kg
