ARB’s range of rear bars, incorporating wheel carriers and jerry can holders, provide additional functionality while delivering high quality vehicle protection.
4WDs with the spare tyre mounted on the back door can suffer from unnecessary door assembly stress, while a spare wheel located underneath a vehicle can be difficult to access, be more prone to damage and may affect ground clearance when driving off road. Both of these mounting methods can also prove unsuitable if a larger tyre size is sought.

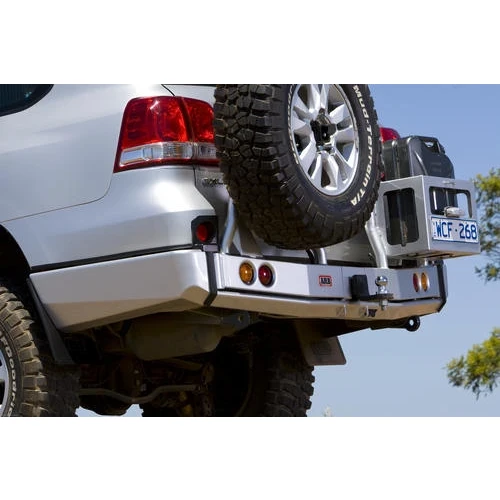

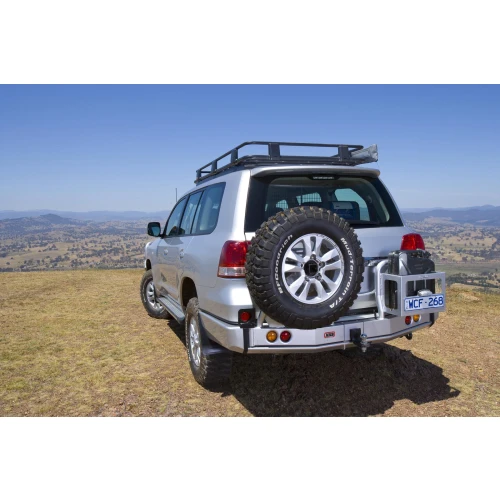

An ARB rear bar addresses all of these issues, relocating the spare tyre onto the bumper assembly via a swing out carrier.
KEY FEATURES

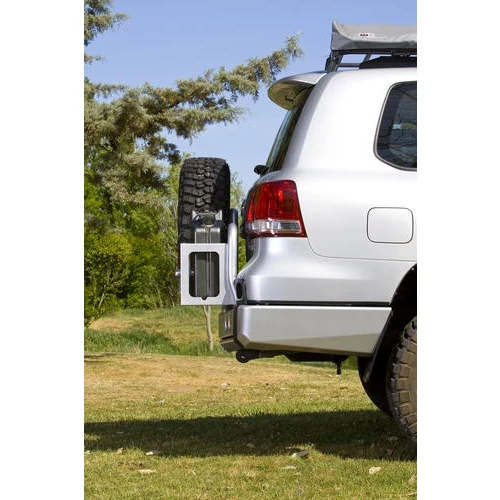

- Wheel or jerry can carriers can be optioned on either side of the rear bar (excluding barn door model)
- A single carrier can be fitted, or the rear bar can be installed without any carriers at all. Neat insert panels are used in this instance
- Twin 33” or a single 35” tyre can be accommodated on most vehicles
- Carriers are mounted via dual shear pivots for maximum strength
- Spare tyre is secured to the stud plate with a lock nut with the provision to fit a padlock to secure the stud plate to the carrier
- Multi fit spare wheel stud system provides flexibility for alternate rim selection
- Wing sections can be removed and replaced if they sustain damage

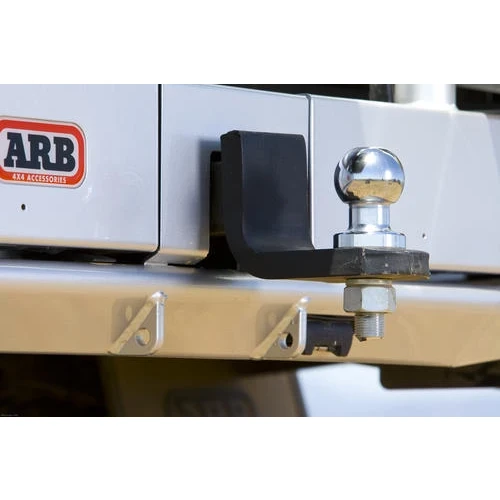

- Incorporates heavy duty towing system, custom tow tongue provided for this model
- Dual, laminated towing points and Off-road jacking points
- Extruded alloy step section
- Supplied in a durable powder coat finish with optional colour coding available
- Provision to mount an optional HF aerial bracket and camp light
- Bar Code 9332018003966
- Fitting Time (min) 300
- Packaging length [cm] 180
- Packaging width [cm] 72
- Packaging height [cm] 51
- Gross Weight [kg] 100
- Specification Wing panel
- Thickness [mm] 3
- Specification Refer Vehicle Spec'n
- Specification Max Towing Capacity
- Towed Weight [kg] 3500
- Specification Max Towball Download
- Towed Weight [kg] 350
- Class Class 4, 50mm
- Material Steel
- Surface Primed
- Surface Powder coated
- Colour Black
- Surface Smooth
- Product Feature Bumper-Cut Design
- Product Feature Suits Hitch mount
- Product Feature Hitch or Tow Tongue included
- Product Classification Rear Bar
*3 (5700251/52) LHS/RHS Wheel Carrier
*3 (5700261/62) LHS/RHS Jerry Can Holder
*3 (5700231/32) LHS/RHS Cover Panel

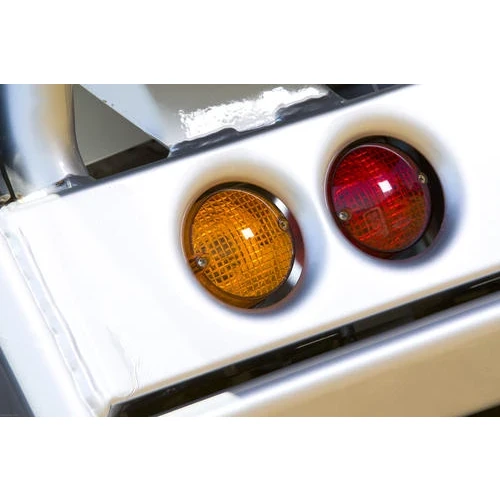

*3 (5700070) Reversing Light Kit - Mandatory If 2 Wheel Carriers Are Fitted
(5700060) Hi-Lift Mount Suits ARB Wheel Carrier
(5715010) Rear Camera/Parking Sensor Fitting Kit - Required for models Fitted with Rear
Camera Or Parking Sensors
(5715020) Rear Bar Fog Light Kit for 5615010 - suits Models with OE Rear Fog Light only
(5715030) Loom Adaptor - Required for 8/2009On models
(5700100) ARB RSTB Bearing Service Kit, For Pre-Existing 5700211/2/21/2
(3500370) ARB Embossed Mudflap
(3515040) ARB Rear Tow Point Adaptor Suits (5615010)
*1 3500370 X 2 ARB Embossed Mud Flap Required As OE Mud Flaps Cannot Be Refitted
*2 Rear Bars Utilise OE Towing System, 5615010 Also includes Gooseneck And Wiring Loom
*3 Note - 5615010 Must Be Installed with LHS & RHS Cover Panels, Wheel Carriers Or Jerry Can Holders
*4Cannot be fitted to vehicles with rear barn doors (right and left door).of the ARB Rear Bar on these models. Please contact ARB for further details
